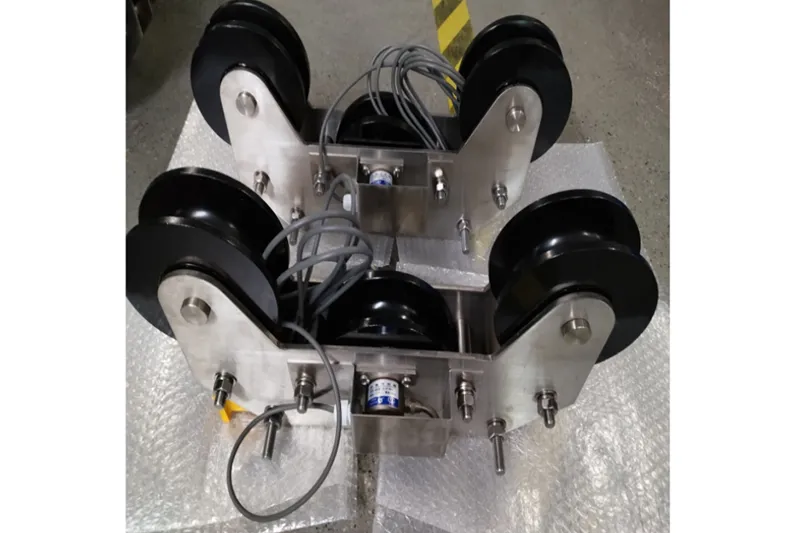

The SHL three-pulley weight sensor is mainly suitable for lifting equipment without exposed fixed rope heads such as truck cranes and crawler cranes. The three-pulley uses the tension generated by the force of the wire rope to react with the shear force generated by the pulley to measure the weight of the lifted object.

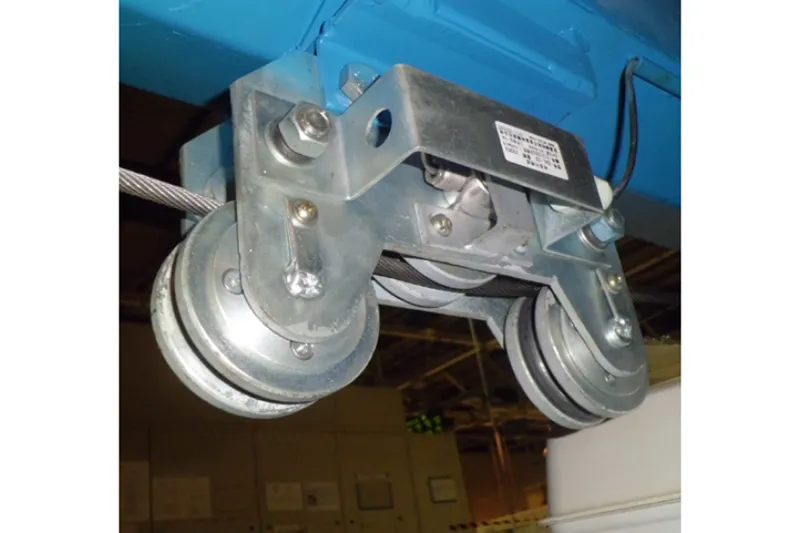

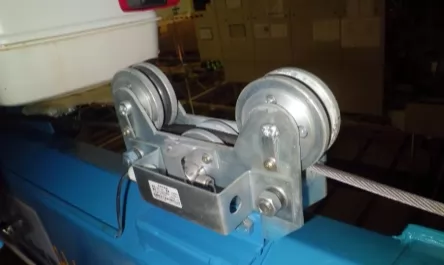

The SHL three-pulley weight sensor is installed on the steel wire rope and can be directly fixed to the boom, or it can be equipped with a universal joint and a pull rod to hang the sensor on the wire rope.

Technical parameters

Style No.WS-SHL
Rangestart from 500KG
Typical Applicationsload sensing, transfer transportation system, wire rope pull strength measurement
Accuracy of measurement1.0±0.005mv/v
Ultimate overload250%F.S.
IP CodeIP68.
Safe Overload150%F.S.
Temperatureminus 30℃~+70℃

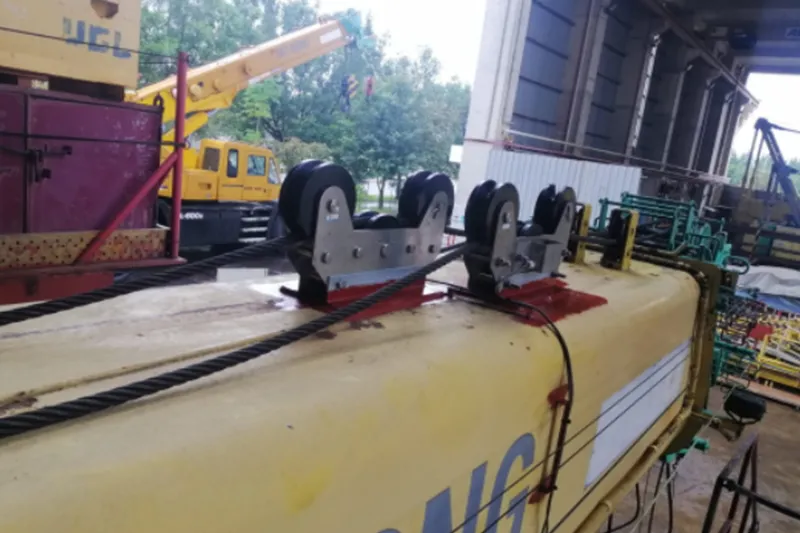

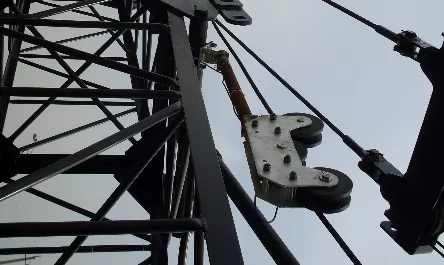

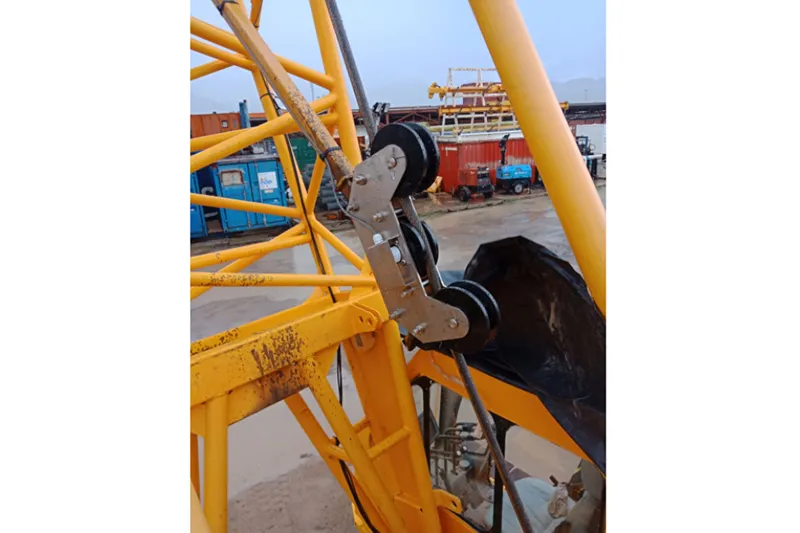

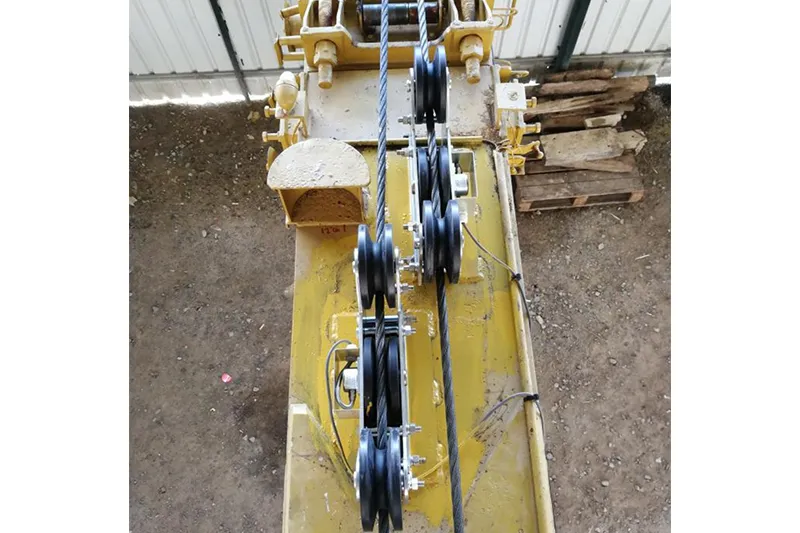

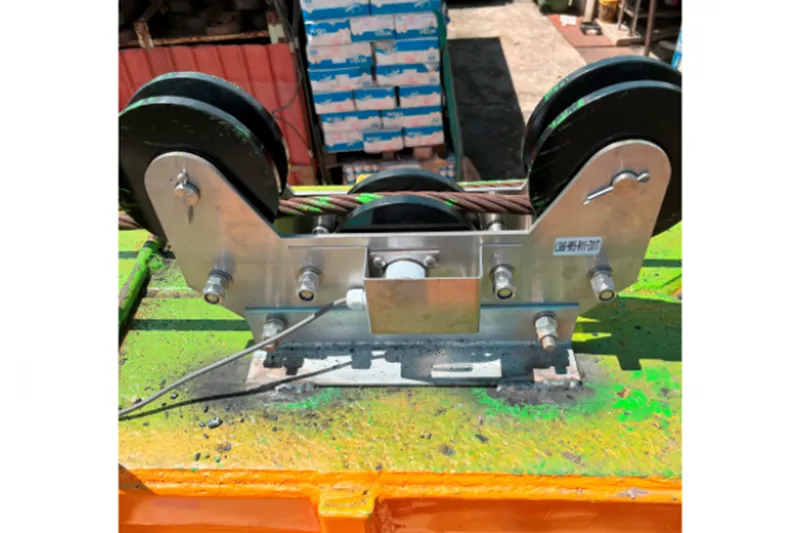

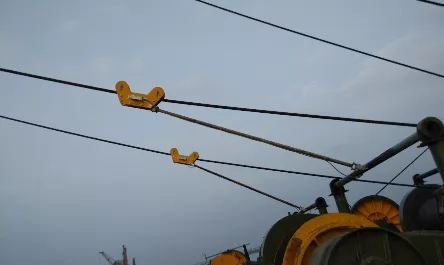

INSTALLATION CASE

WS-SHL Three Pulley Load Cell
WS-SHL Three Pulley Load Cell
WS-SHL Three Pulley Load Cell
