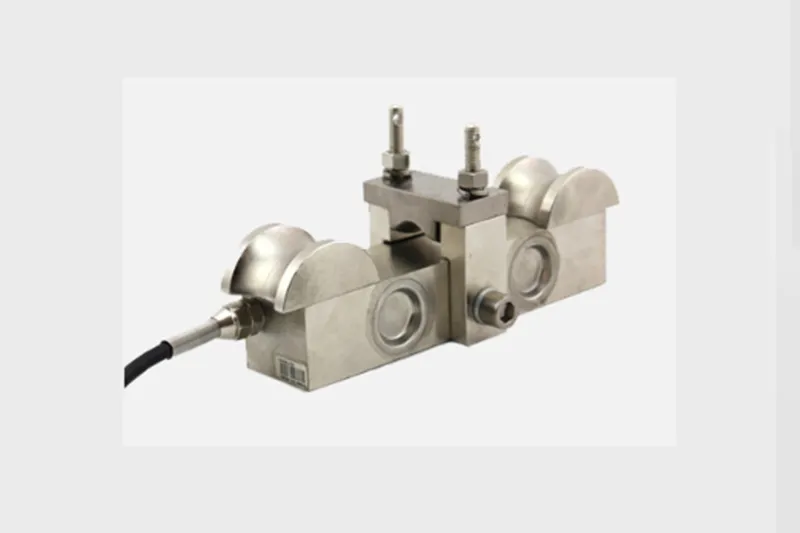

WS-PY Clamp Type Load Cell
PY type load cell is mainly used for measuring the pulling force of crane wirerope.It can be used in all kinds of cranes, such as the quayside crane in terminals, and gantry crane, tower crane, mobile cranes.
PY type load cell is mainly used for measuring the pulling force of crane wirerope.It can be used in all kinds of cranes, such as the quayside crane in terminals, and gantry crane, tower crane, mobile cranes.
Technical parameters
| Style No. | WS-PY |
| Accuracy class | 0.05. |
| Sensitivity | 1.0±0.005mV/V |
| Input resistance | 750±20Ω. |
| Output impedance | 702±2Ω. |
| Insulation resistance | ≥5000MΩ. |
| Power Supply | 15V. |
| Safe Load Limit | 150% F.S. |
| Temperature Range | minus 30℃～+70℃. |
| IP Grade | IP66 IP67. |
| The output signal | 0~20 mV voltage analog signal, |

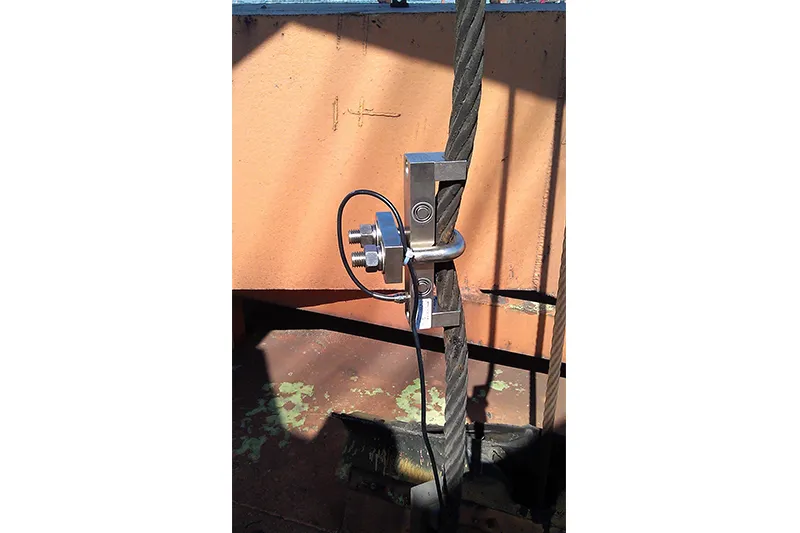

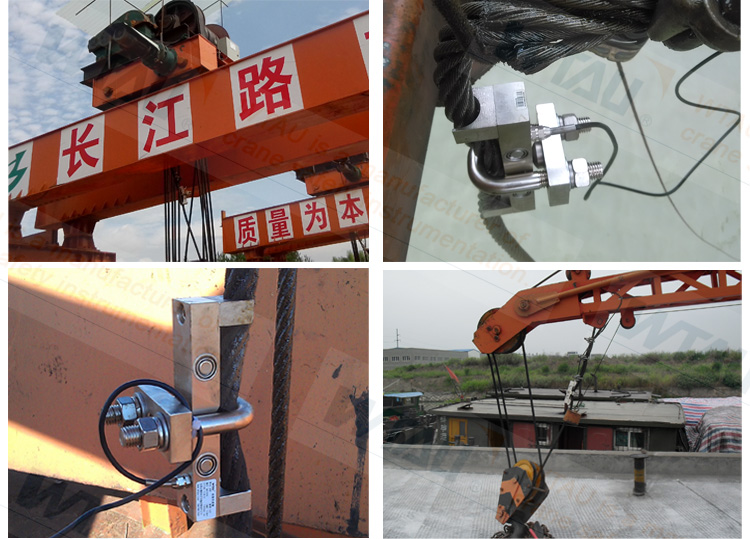

INSTALLATION CASE
