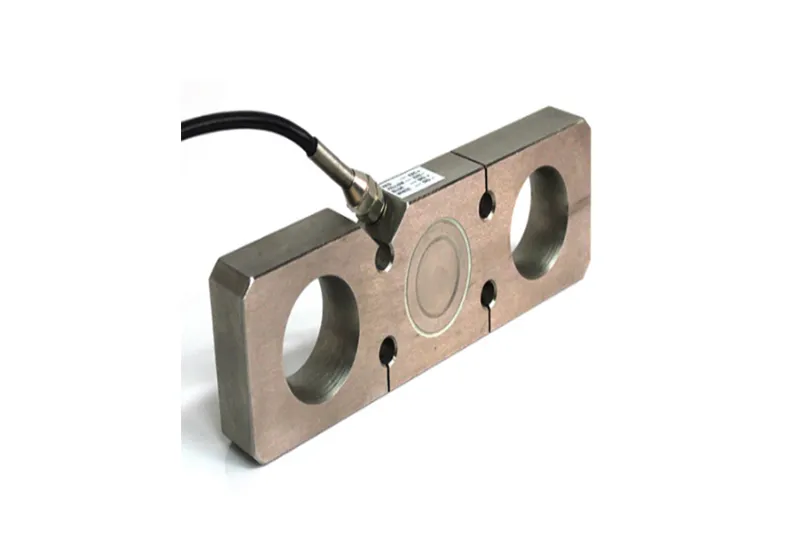

The BH plate ring weight sensor is installed between the force-bearing fixed rope and the fixed connection on the lifting rope, replacing the installation of the original shaft pin. There are two pin holes at both ends of the sensor. One end is installed on the crane lifting eye or snap ring, and the other end is connected to the wire rope.
BH plate ring weight sensor is suitable for wire rope tension measurement.
DETAILED DESCRIPTION

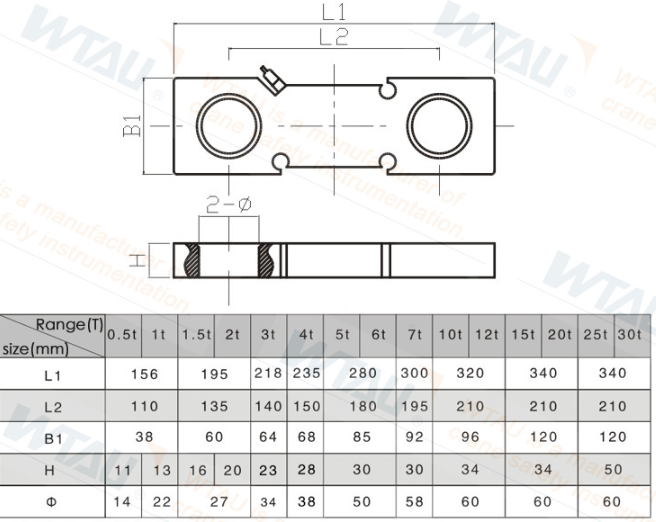

Technical parameters
| Style No. | WS-BH |
| Range | start from 500KG. |
| Typical Applications | load sensing, transfer transportation system, wire rope pull strength measurement. |
| Accuracy of measurement | 1.0±0.005mv/v. |
| Ultimate overload | 250%F.S. |
| IP Code | IP68. |
| Safe Overload | 150%F.S. |
| Temperature | minus 30℃~+70℃. |

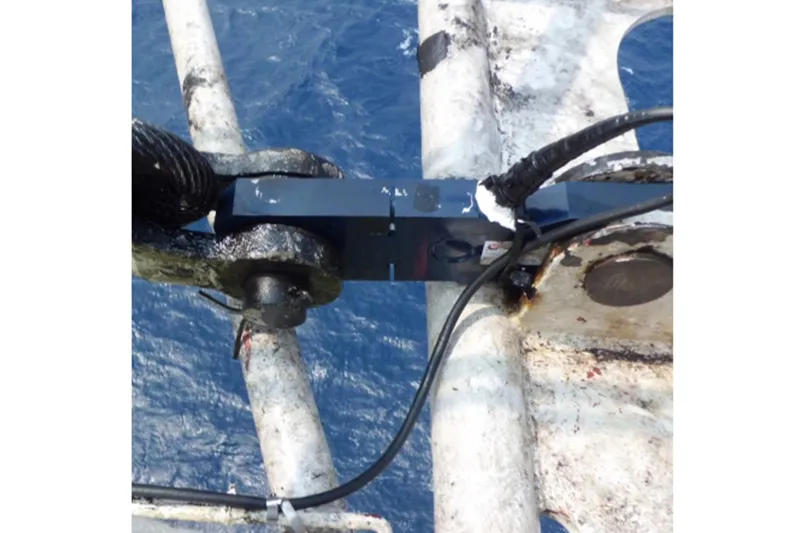

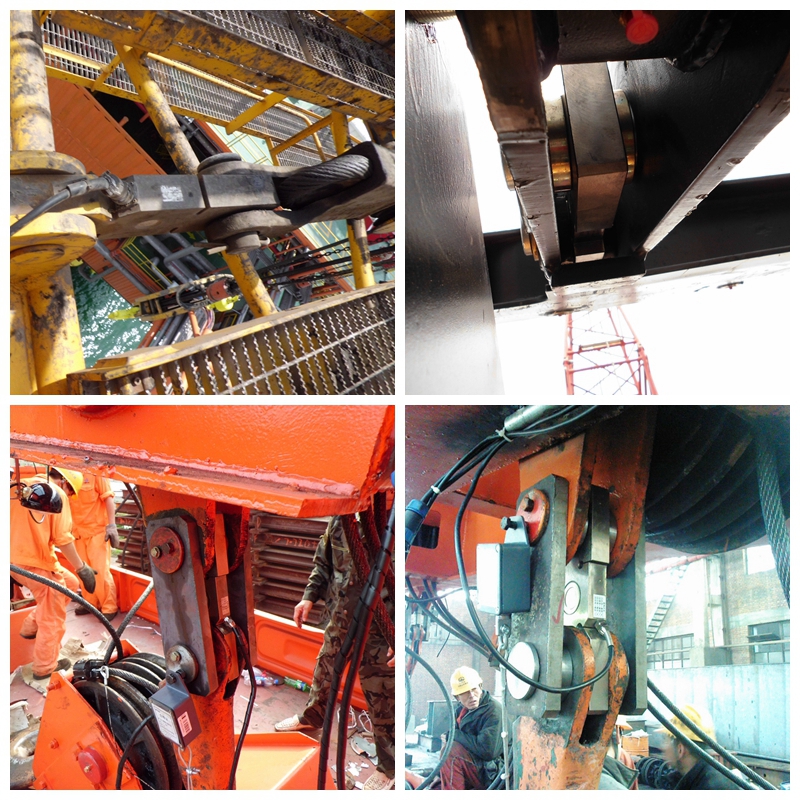

INSTALLATION CASE
