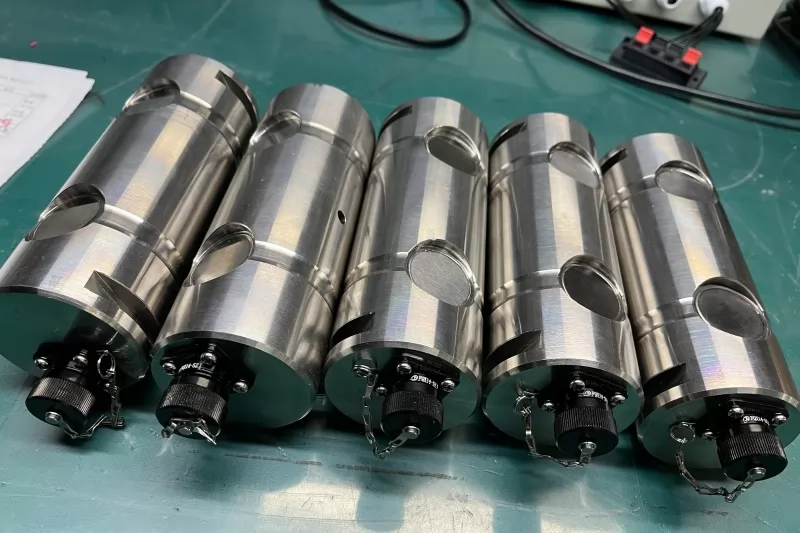

WS-ZX Load Sensor
ZX type load can be used as a rigging shackle or (movable/fixed) pulley's rigging. It also can be used for measuring load weight.
ZX type load can be used as a rigging shackle or (movable/fixed) pulley's rigging. It also can be used for measuring load weight.
DETAILED DESCRIPTION
Technical parameters
| Style No. | WS-ZX |
| Specified load | 10, 15, 20, 25, 30, 40, 50t. |
| Temperature Effect On Output | ±0.02%F.S/10℃ |
| Max overload | 250%F.S. |
| Sensitivity | 1.0±0.005mV/V. |
| Input impedance | 750±20Ω. |
| Driving voltage | 10~12V DC. |
| Synthetic errors | ±0.02%F.S; ±0.03%F.S. |
| Output impedance | 703±3Ω |
| Max driving voltage | 15V DC |
| Creepage(30 min) | ±0.02%F.S. |
| Insulation resistance | ≥5000MΩ. |
| Sealed IP | IP68. |
| Null balance | ±1%F.S. |
| Working temperature range | minus 30~+70℃. |
| Material | Alloy steel |
| Null temperature influence | ±0.02%F.S/10℃ |
| Safe overload | 150%F.S. |
| Cable | Φ5mm |

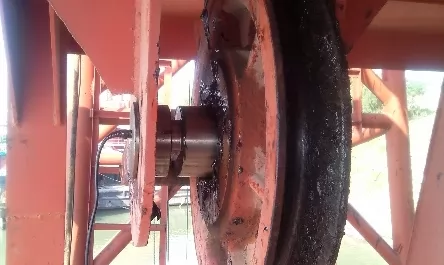

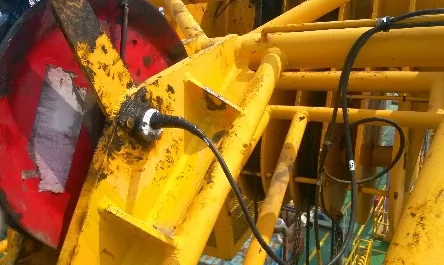

INSTALLATION CASE
