Dec. 30, 2024

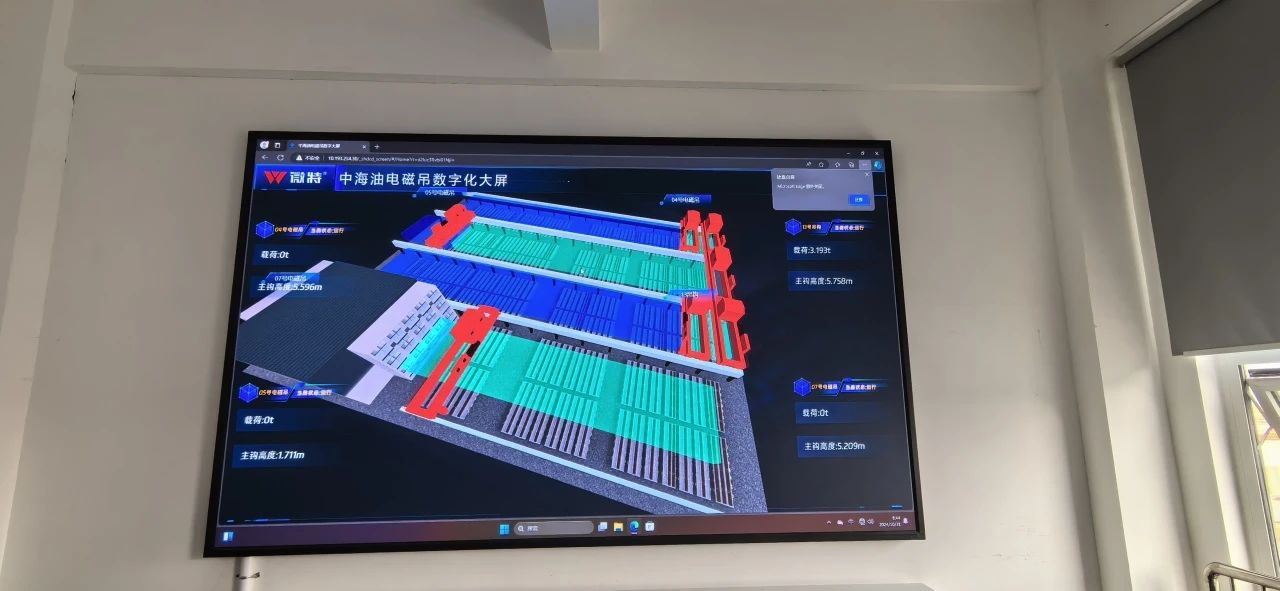

The remote centralized control system for bridge cranes consists of five core components: remote control platform, video monitoring system, AI intelligent management system, fault diagnosis and analysis, fiber-optic cable + 5G wireless redundant network, etc. The system incorporates intelligent technology while retaining the basic functions of traditional cranes, realizing remote control and intelligent management of cranes. Users can obtain the operating status information of the crane in real time through the system, and conduct remote monitoring and fault diagnosis. At the same time, the system also has powerful self-diagnosis and self-control capabilities, and can automatically adjust the operating parameters of the crane according to actual conditions to ensure its safe and stable operation.

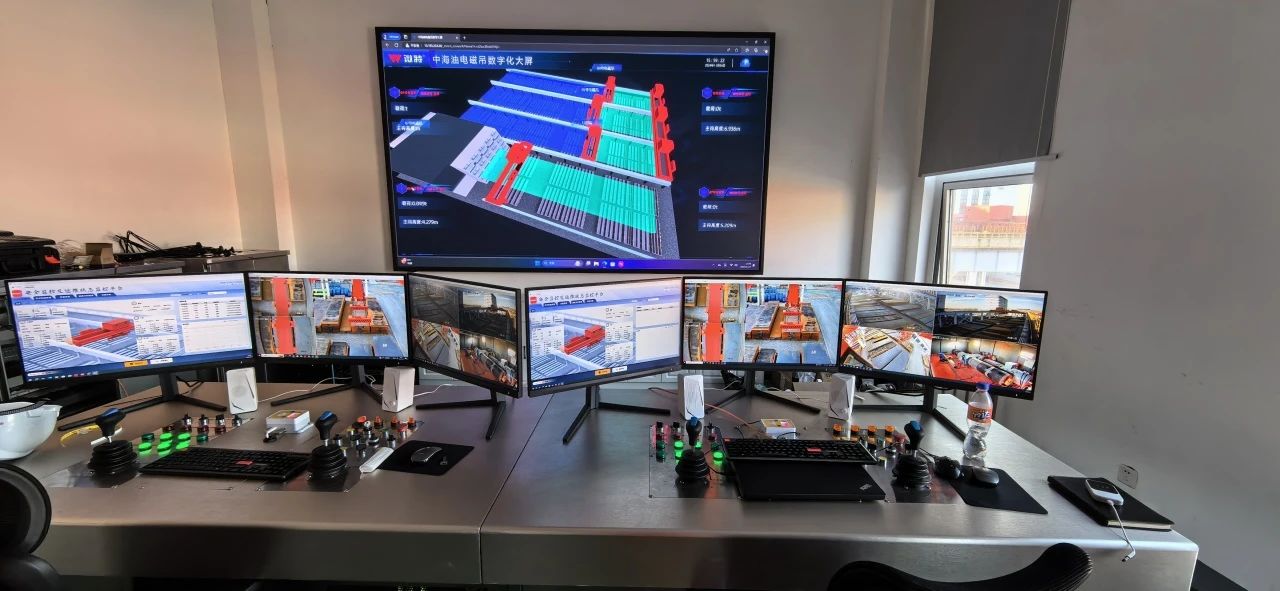

1. Remote Control Platform
Applicable to screw hoists, winch hoists, two remote control consoles, using a 2 to 4 flexible switching mode, each control console can switch to control four cranes. In the control room, operators can achieve comprehensive remote control of bridge cranes with only the control console, covering various operations such as lifting, traveling, large and small vehicles, etc., with simple operation and quick response.

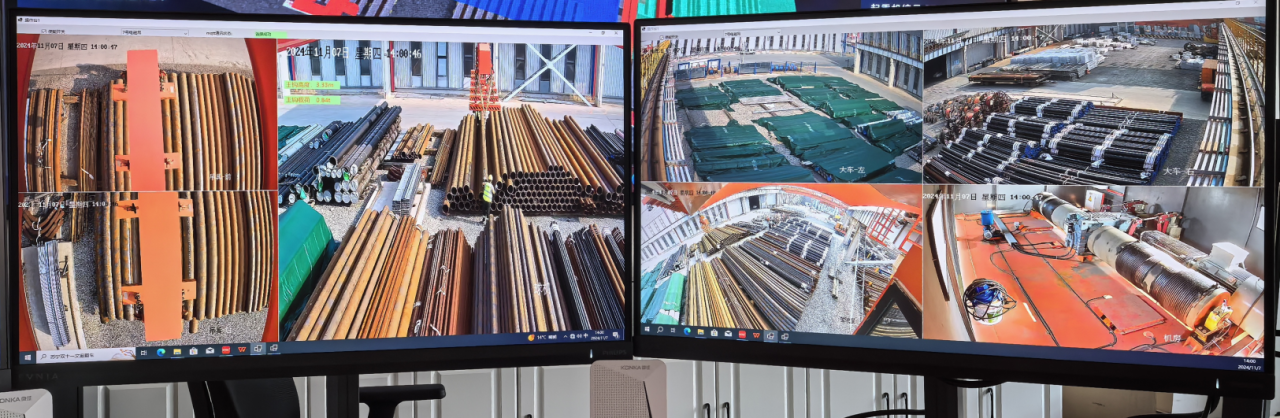

2. Video Surveillance System
By arranging cameras at multiple locations, the crane operation area is fully covered and visual blind spots are eliminated. Operators can monitor the equipment operation status in real time and clearly see the position of the heavy objects, effectively avoiding errors and safety hazards caused by long-distance observation.

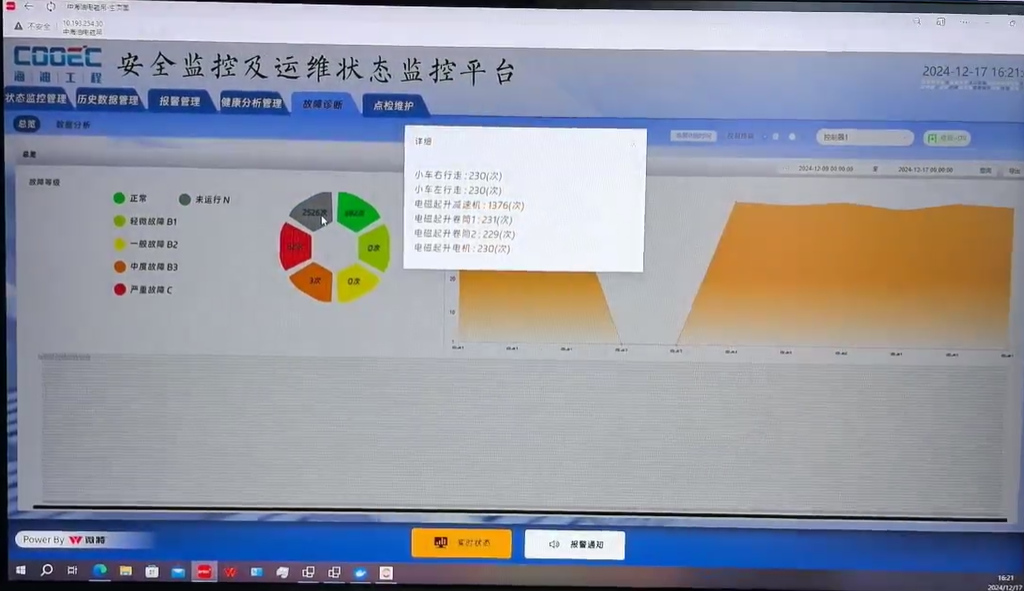

3. Fault Diagnosis and Analysis
The fault diagnosis and analysis system has powerful self-diagnosis capabilities and can monitor the operating status of the crane in real time by installing sensors. Once a fault occurs, the system will immediately issue an alarm and provide detailed fault information to help operators quickly locate and eliminate the fault to ensure the normal operation of the crane.

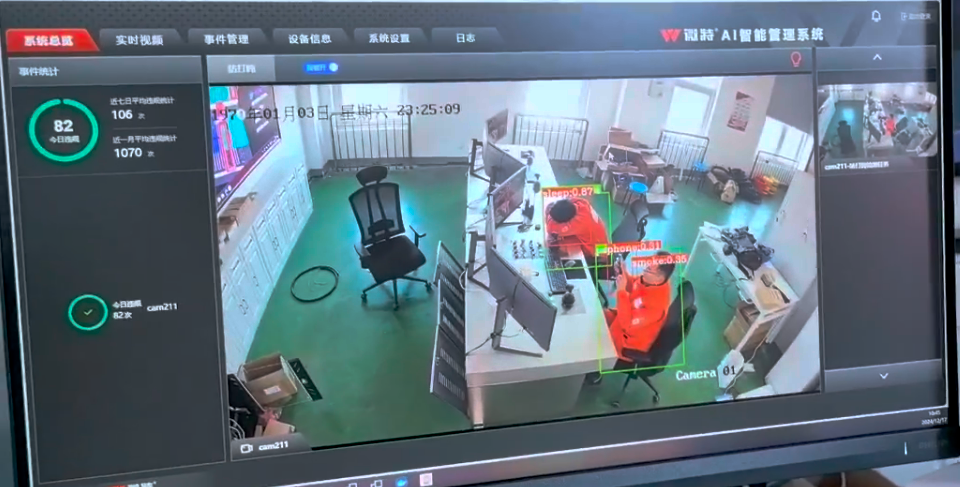

4. AI Intelligent Management System
The system uses AI video learning and algorithms to provide real-time identification and alarm reminder services for safety risk points such as personnel, environment, and security. It actively identifies unsafe factors, and promptly distributes dangerous information to relevant personnel for timely processing, intelligent duty, and saves labor costs.
5. Fiber Optic Cable + 5G Wireless Redundant Network
By making full use of the "fiber + 5G" technology, low latency and high bandwidth control effects can be achieved. At the same time, the unique network architecture design solves the problem of complex network interaction of multiple devices, and realizes redundancy in the three-layer network management switch, further improving the stability and reliability of the system.
The bridge crane remote centralized control system can realize remote control and monitoring of the crane through simple operations, greatly improving work efficiency and safety, and reducing the burden of enterprise operation and maintenance. This solution not only brings significant economic and social benefits to users, but also provides strong support for the transformation and upgrading of the crane industry. In the future, Weite will continue to devote itself to the research and development and innovation of crane control technology to provide users with more high-quality, efficient and safe lifting services.
