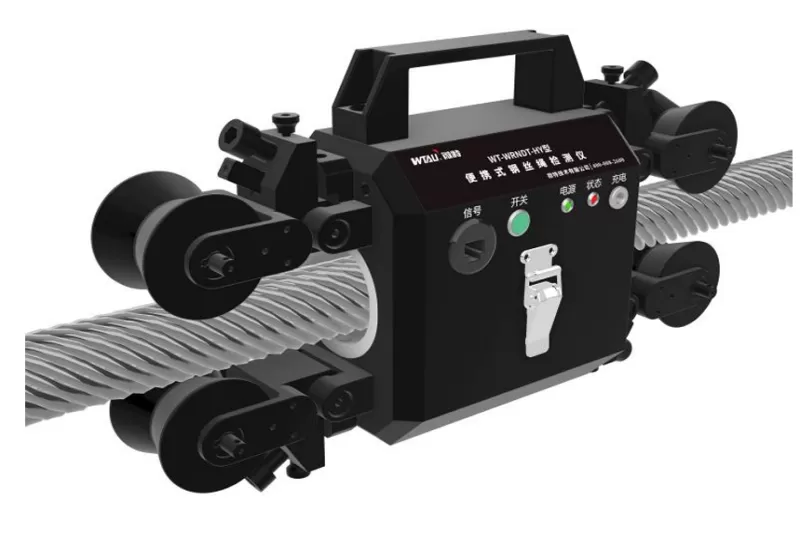

WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system
WT-WRNDT-HY Wire rope non-destructive testing system

WT-WRNDT-HY Wire rope non-destructive testing system

WT-WRNDT-HY series wire rope detection and evaluation system, as an autonomous safety detection program, can easily adapt to a variety of modern computer systems with its excellent compatibility. The system integrates multiple functions such as detection, alarm, data storage and risk assessment, greatly improving the detection efficiency. Under the premise of ensuring that the detection process is not disturbed, it can effectively detect the internal and external damage of the wire rope and automatically generate a detection report, avoiding the low efficiency of manual detection and the uncertainty caused by subjective factors, and truly realizing an intelligent and efficient detection process.

DETAILED DESCRIPTION

Portable: easy to use, suitable for wire ropes of various diameters, easy to inspect and report at any time, built-in power supply, simple maintenance

Technical parameters





Scope of use

WT-WRNDT-HY-20  10~20mm

WT-WRNDT-HY-30  21~30mm

WT-WRNDT-HY-40  31~40mm

WT-WRNDT-HY-50  41~50mm

Can be customized if beyond the range

 Size160mm×120mm×160mm
Speed range0.3~3m/s
Air gap range5~10mm
communication methodWired/WIFI
Operating Voltage 220VAC ± 10%
Working current≤200mA
Sensor power dissipation<300mW
Continuous use time after full charge6~8h
Detectable damage typesInternal and external broken wires, wear, corrosion and other damage
Wire breaking accuracy >1 broken wire
Wear accuracy>3%  (Sudden wear)
Detection accuracy>95%
Operating ambient temperature-35~70℃
Use relative humidity≤95%RH(25℃)
Storage temperature environment-40℃~+70℃, Relative humidity≤95%
