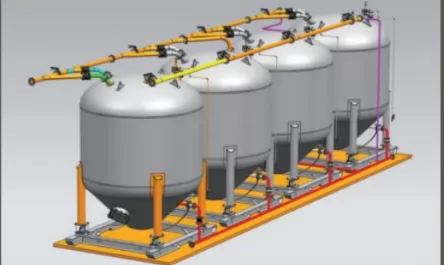

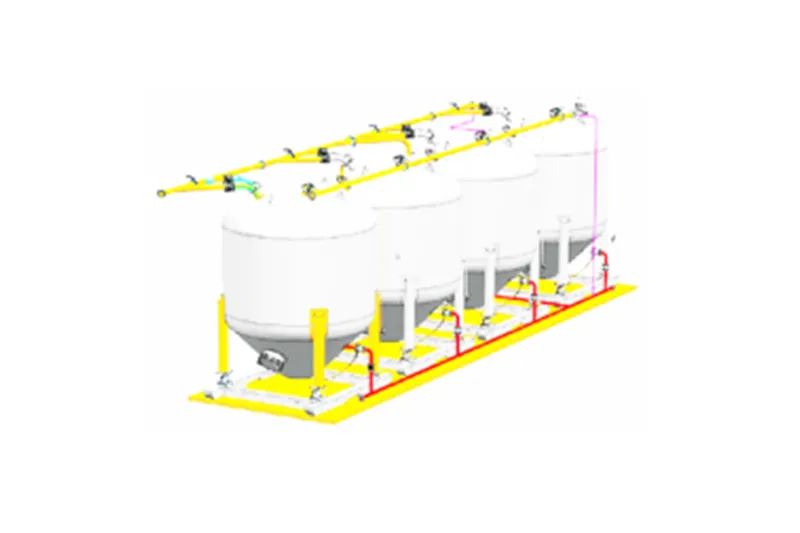

Cements lurry distribution material canning platform system must be equipped with an automatic distribution material weighing control electrical system to realize the automatic feeding of each raw material canned cement slurry according to the proportion,alarm for material shortage,overload alarm for raw material tank loading,and alarm when material is lacking. the signal makes the batching system shut down,etc.
DETAILED DESCRIPTION
Cement slurry filling platform system should be equipped with automatic ration material weighing control system to realize slurry feedstock proportionally, starves feeding alarm,feeding overload alarm,and when starved feeding, offer alarm signal to stop running, etc.
WT-650V barite tank load system's manufacturing process and materials comply with the follwing standards and secifications.
Meet the nationalstandards GB3836.1-2000(General requirements for explosive environment with explosion-proof electrical equioment) and GB3836.4-2000(General requirements for explosive environment with explosion-proof electrical equioment which with secure circuit and electrical equipment "i") electrical equipment control,relay protection design follow GB and IEC standards. Electrical equipment and materials from the corrseponding industry recognized manufacturers.whole system with control box, small dashboard using dustproof splash seal structurs,and meet IP56 is GB4208 standard.
Technical parameters
| Style No. | WT-W650V |
| Explosion-proof grade | Ex dll BT4 |
| WOrking voltage | DC12V~24V or AC220V |
| Function | Built-in data records and storage capabilities |
| Working Temperature | minus 30℃ ~+70℃ |
| Working Humidity | 10-90%RH(prohibit dew) |
| Power consumption | ≤50W |
| Alarm volume | ≥60db |
| System error | ≤±3% |

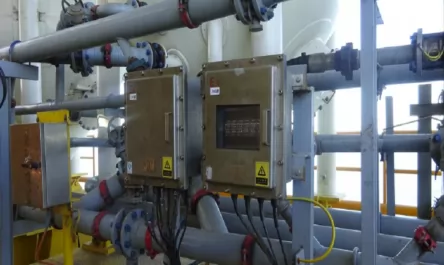

INSTALLATION CASE
