WTL-A700-YY Hydraulic load moment indicator

The WTL-A700 hydraulic type truck mounted crane load moment indicator is a safety protection device for the truck mounted crane.This product uses a 32-bit high-performance microprocessor as the hardware platform, and the software algorithm uses the mostadvanced hydraulic power extraction algorithm in China. This algorithm has absorbed many years of field experience and has been continuously improved. Weite LMI controls the lifting equipment to function as per manufacturer's suggested safe load charts. As an OEM manufacturer of LMI system, Weite Technologies is looking forward to offering you the best services for your cranes & other lifting equipments.

INQUIRIES NEXT PRODUCT

DETAILED DESCRIPTION

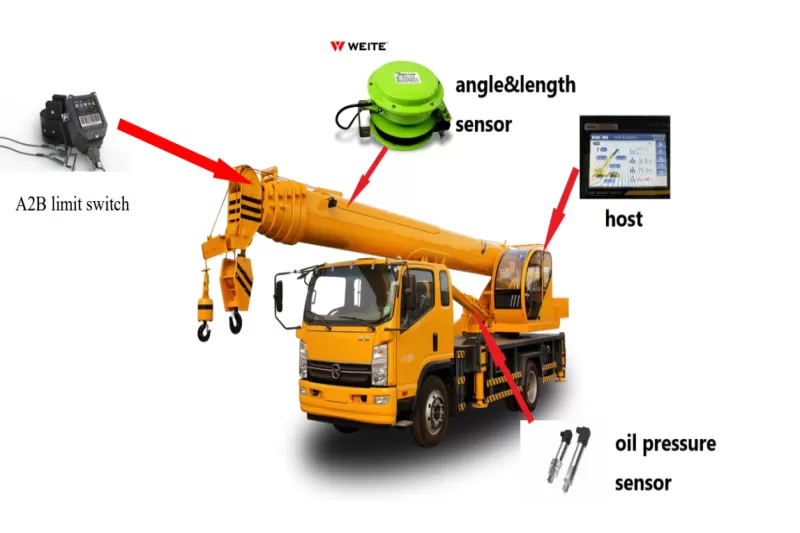

Components of the WTAU hydraulic crane load moment indicator system WTL-A700-YY

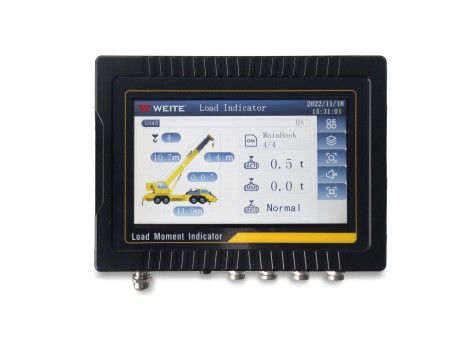

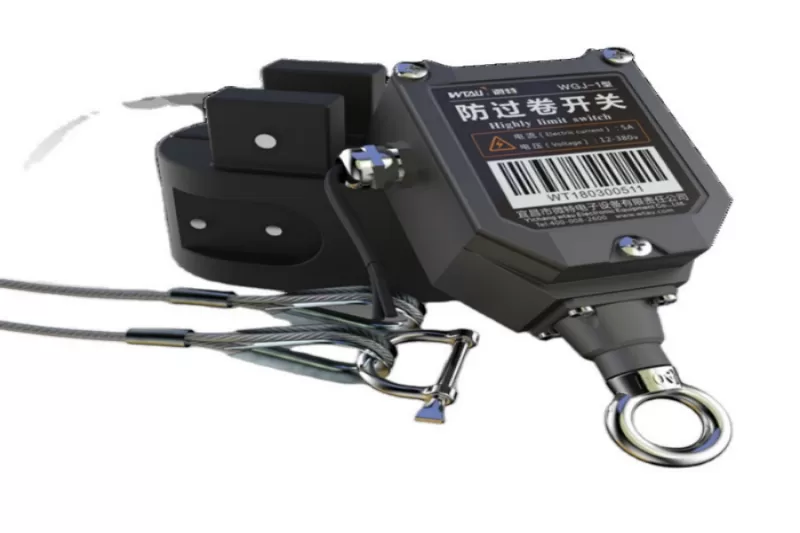

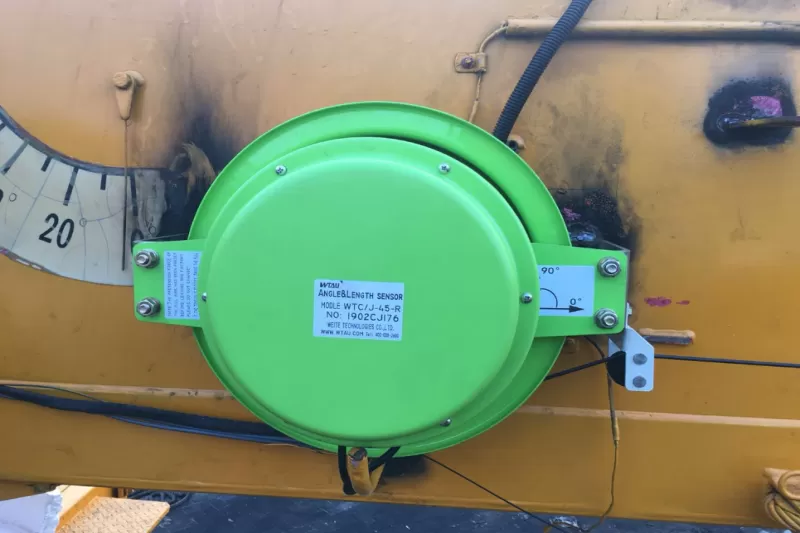

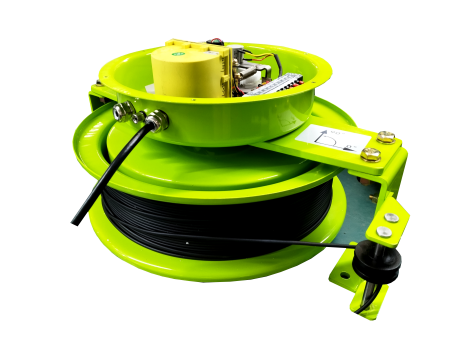

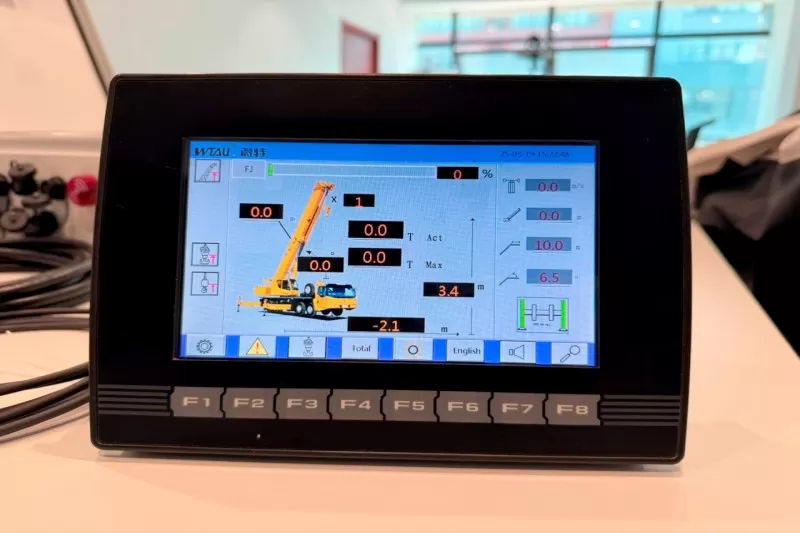

Display The hydraulic torque limiter is a hydraulic torque limiter specially designed for truck cranes, tire cranes, all-terrain helicopters and other equipment. It is commonly known as a hydraulic power take-off crane computer. The torque limiter consists of a host instrument, a length and angle sensor, a hydraulic sensor, a signal rope and other parts.	Angle length sensor This sensor accurately measures both the length and angle of the crane's boom, providing essential data for calculating load moments and maintaining safe lifting practices.	A2B limit switch The switch is installed with a weight of appropriate weight, and the up and down movement of the hook is used to lift or release the weight. When the weight is disconnected or the switch is turned on, the power supply brake system of the winch is automatically cut off to limit the overwinding of the wire rope and to achieve the purpose of lifting the hook within a certain height.

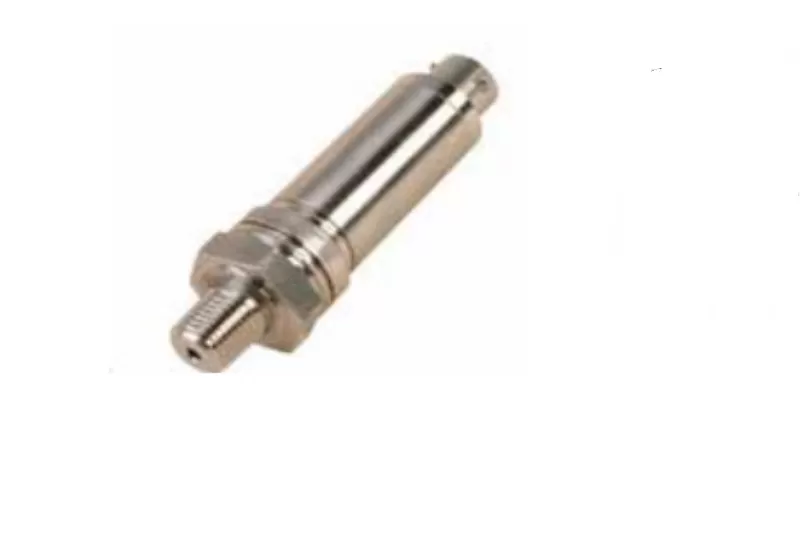

Oil pressure sensor The load cells are sensors integrated into the crane's lifting mechanism, precisely measuring Hydraulic oil pressure and transmitting this data to the LMI system for analysis.

Technical parameters

Style No.	WTL-A700-YY
Operating voltage	DC9-36V
Working temperature	minus 20℃～+70℃
Storage temperature	Storage temperature
System error	≤±5%, display error: ≤±5%, control error: ≤±5%
Relay contact capacity	AC220V 1A, 2 ways, can be expanded to 4 ways (tricolor light control need to declare)
Communication interface	RS485 and Can bus (need to declare to the company, the default does not lead to)
Protection grade	host and sensor protection grade IP65
