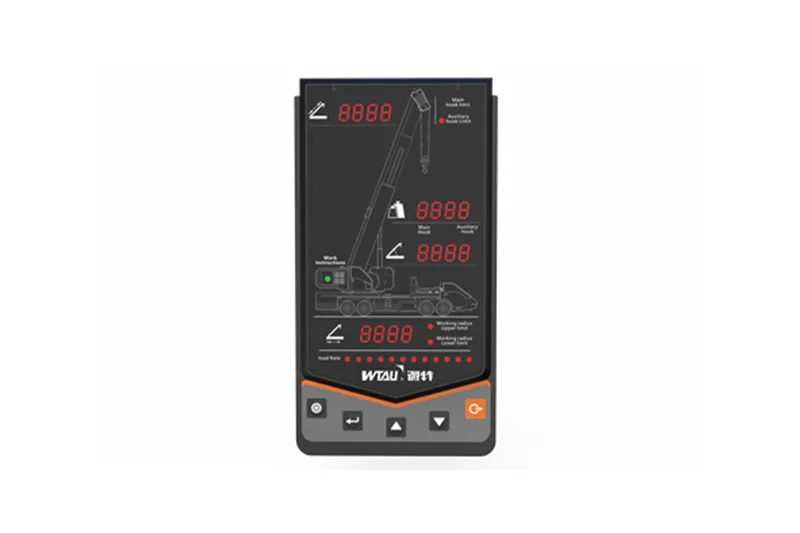

WTL-A100N Load moment indicator
WTL-A100N Load moment indicator

WTL-A100N Load moment indicator

Load Moment Indicator (LMI), also known as Rated Capacity Indicators (RCI),  or a Safe Load Indicator (SLI) or an Automatic Safe Load Indicator (ASLI) is a device which is installed on mobile or portal cranes to alert the operator if the lift is exceeding the safe operating range of the crane.

DETAILED DESCRIPTION

Load Moment Indicator (LMI), also known as Rated Capacity Indicators (RCI),  or a Safe Load Indicator (SLI) or an Automatic Safe Load Indicator (ASLI) is a device which is installed on mobile or portal cranes to alert the operator if the lift is exceeding the safe operating range of the crane. In some cases, the device will physically lock the machinery in circumstances it determines to be unsafe. LMI systems are usually composed of a microprocessor connected to various sensors on the crane itself. The LMI measures the angle and extension of the boom along with the load weight and compares this with the manufacturer's specifications to determine if the lift is safe.


A safe load indicator has the capability of detecting the angle, weight of load lifted, and ground radius of any lifting device. It controls the lifting equipment to the level that it tries to keep the crane functioning as per the manufacturer's suggested safety charts.


The crane is fitted with multiple sensors, for each of the measured parameters, which are then further displayed in the operator's cabin for his benefit.


WTL-A100N Load moment indicator

Technical parameters

Style No.WTL-A100N
Display8inch LCD
Operating temperatureminus 30℃~75℃
Operating humidity85%(condensation)
Signal input≤6 channels
Control output≤6channels
System composition error≤5%(F.S)
Power consumption<30W
Alarm volume>60db
IP gradeIp65
Power supplyDC24V

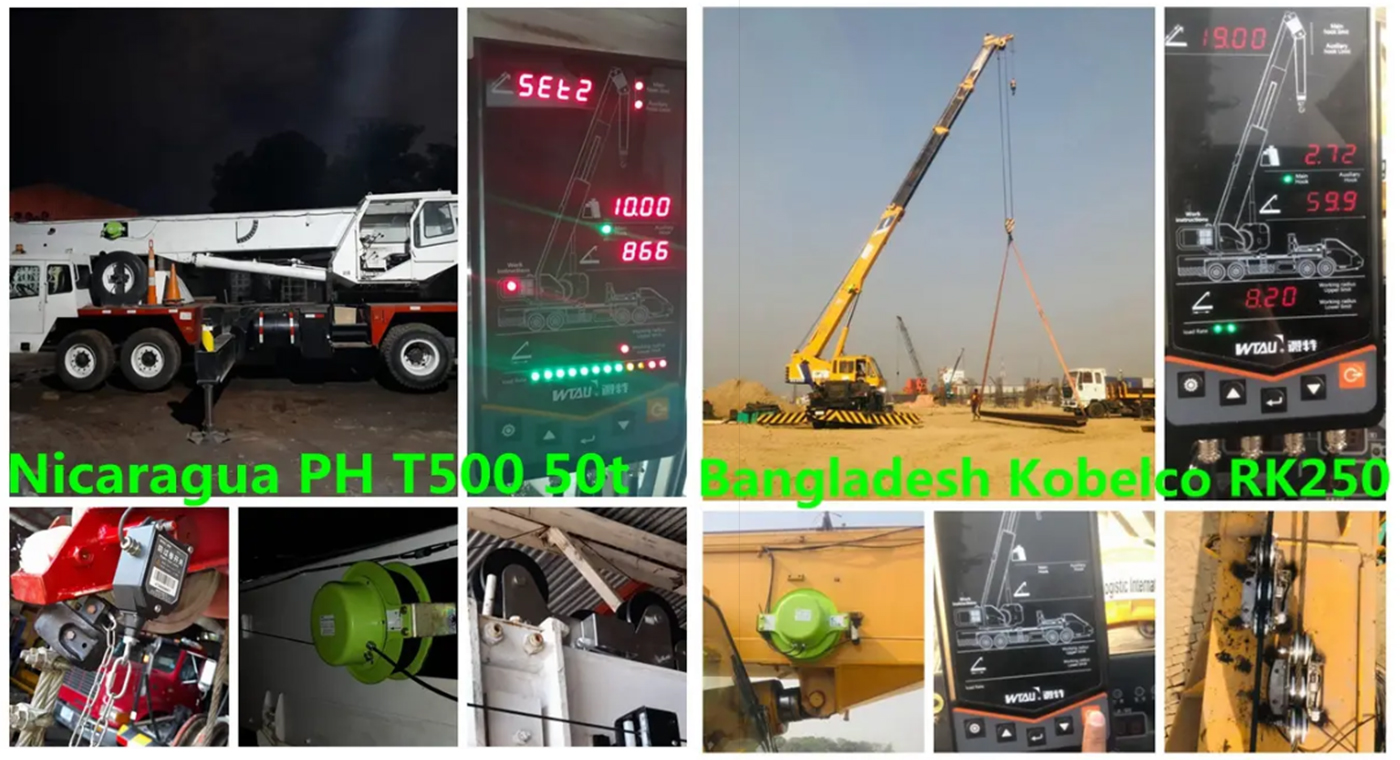

INSTALLATION CASE

WTL-A100N Load moment indicator

CERTIFICATIONS

Explosion Proof Certificate

Explosion Proof Certificate

Quality Management System Certificate

CCS

CE-WTF-B500

ISO2022

CCS

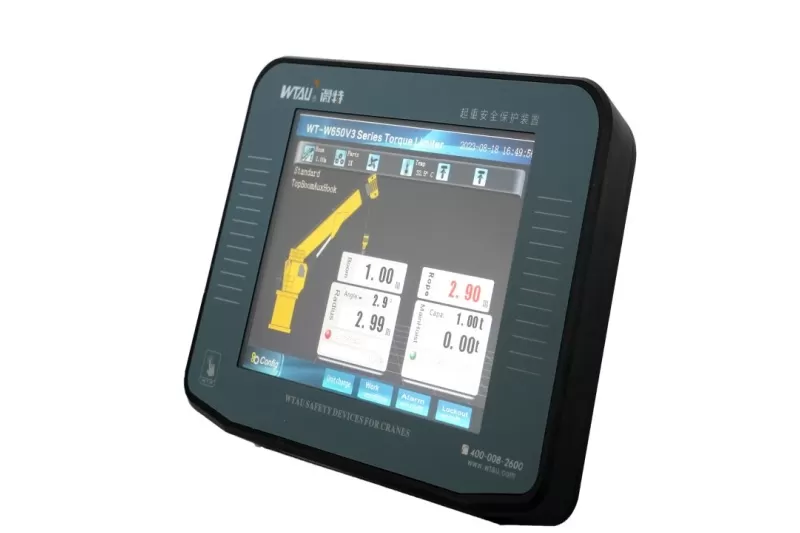

RELATED PRODUCTS
