The new system of tower crane equipment' zone protection anti-collision system, adopted with the most advanced millimeter wave radar sensor design, it is the active detection of obstacles entering the detection area, sending alarm information to the cabin, ensure the operators reaction in time to avoid accidents or provide control signals to command the hoisting equipment directly.
DETAILED DESCRIPTION
The new system of tower crane equipment' zone protection anti-collision system, adopted with the most advanced millimeter wave radar sensor design, it is the active detection of obstacles entering the detection area, sending alarm information to the cabin, ensure the operators reaction in time to avoid accidents or provide control signals to command the hoisting equipment directly. The data is connected by CAN signal and the data connection is stable. Detect horizontal obstacles and use data feedback to detect obstacles on both sides of the boom horizontally to prevent collisions with buildings and other lifting equipment.
Technical parameters
| Style No. | WT-W660V2 |
| Input | 4 to 12 CAN signals; |

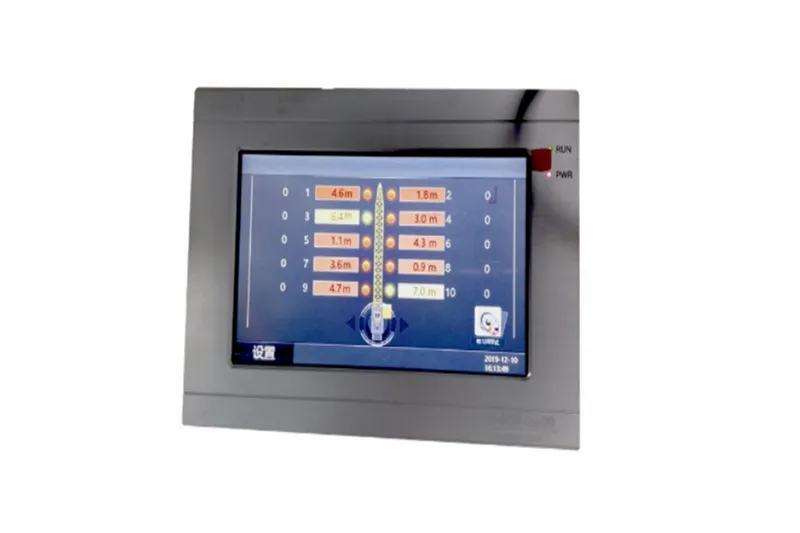

| Display | 7 inch industrial grade LCD screen |
| Working environment temperature | minus 20 ° C ~ 70 ° C |
| Working environment humidity | 95% (25°C) |
| Working methods | continuous |
| The detection distance covers | 0.75M-30M |
| Vibration | Acceleration ≤ 5g (g is gravitational acceleration) |
| System comprehensive error | ≤5% (F.S) |
| Machine power consumption | less than 30W |
| Alarm volume | greater than 60db |
| Motion error | ≤±3% (F.S) |
| IP Grade | IP55 |
| Working voltage | AC220V or DC24V |

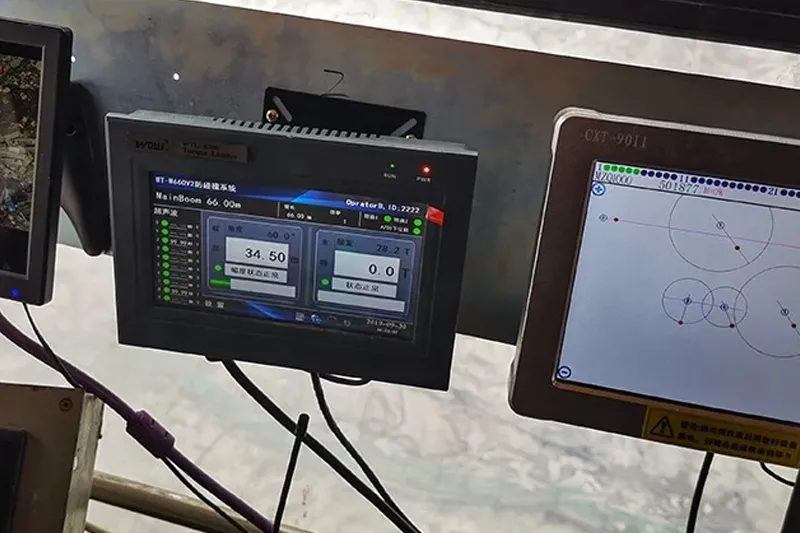

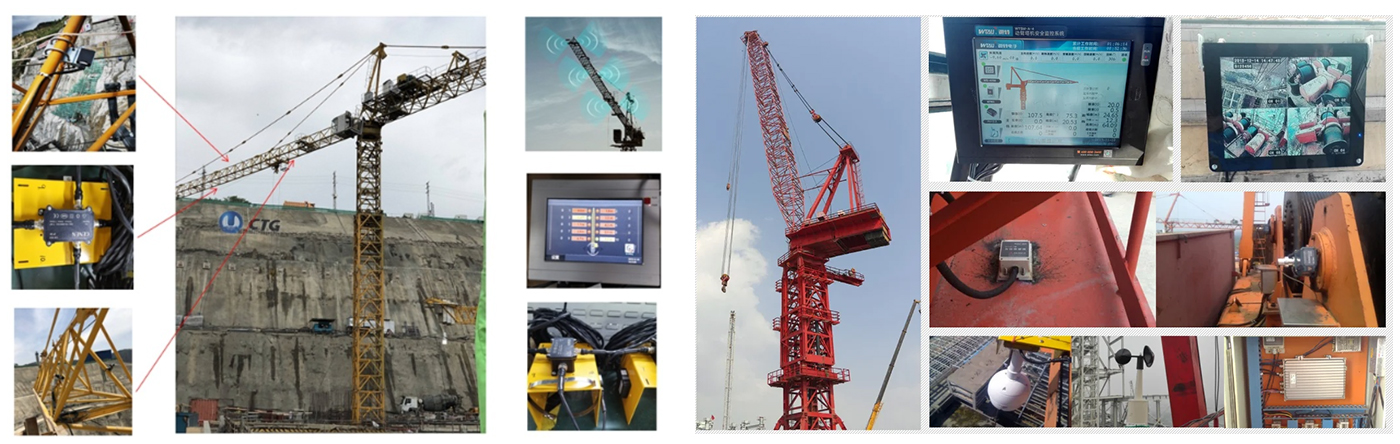

INSTALLATION CASE
CERTIFICATIONS
Explosion Proof Certificate
Explosion Proof Certificate
Quality Management System Certificate
CCS
CE-WTF-B500
ISO2022
CCS
