WTL-A200 crane is a blue screen crane limiter developed and produced by Weite, which has occupied the market for more than 15 years. This type of crane can monitor the maximum lifting work and maximum and minimum amplitude change under different working conditions in real time, and indicate the working status of the crane such as normal operation, full load, overload, amplitude change over-lift, amplitude change over-lower limit, etc., and give corresponding alarms, prompts, and controls to ensure the normal control of the crane.

DETAILED DESCRIPTION

A200 Load moment indicator

A200 Load moment indicator

A200 Load moment indicator

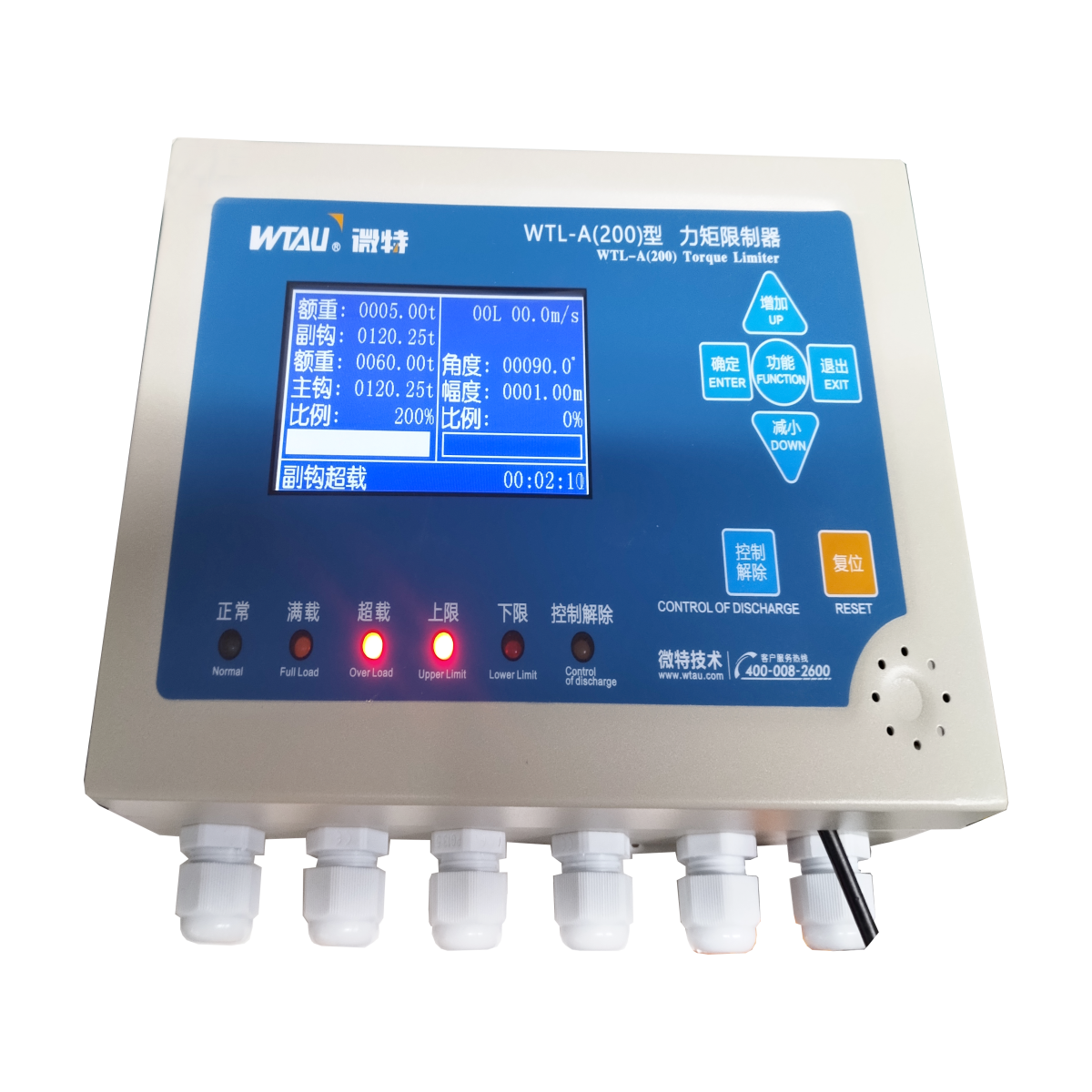

Display

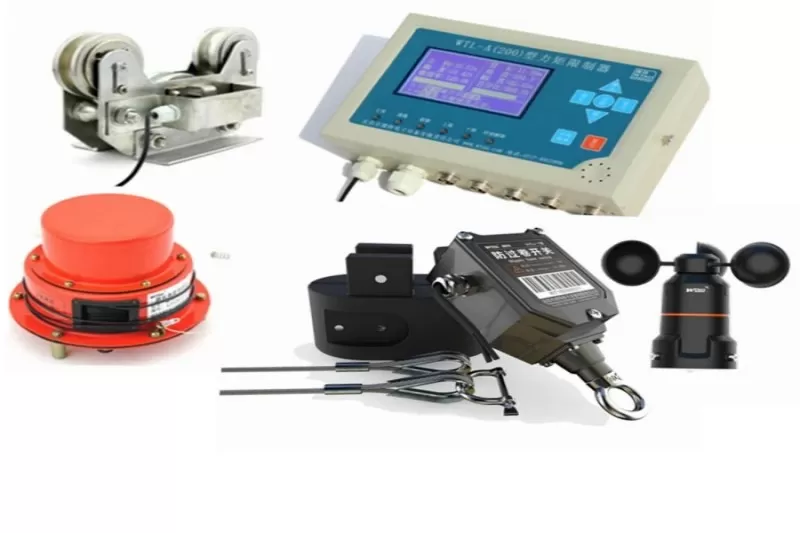

WTL-A200 torque limiter is mainly used for monitoring less than two weight signals and one angle signal (or one weight signal, one angle signal, and one length measurement signal). It can be used for lifting equipment with more monitoring signals, such as truck cranes, crawler cranes, gantry cranes, port cranes, etc.

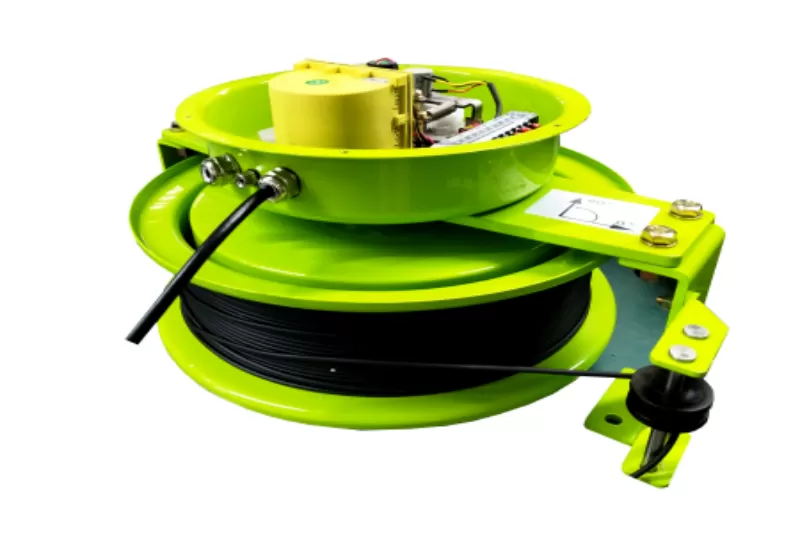

Length and angle sensor


This sensor accurately measures both the length and angle of the crane's boom, providing essential data for calculating load moments and maintaining safe lifting practices.

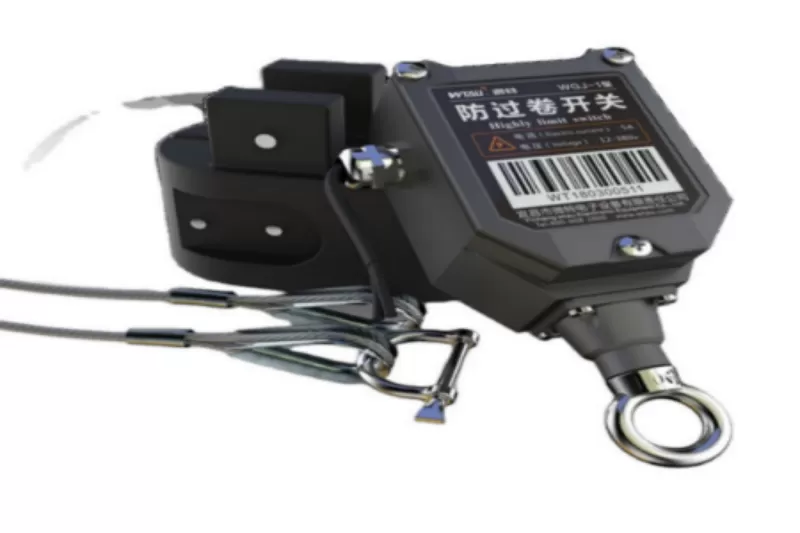

A2B limit switch


The switch is installed with a weight of appropriate weight, and the up and down movement of the hook is used to lift or release the weight. When the weight is disconnected or the switch is turned on, the power supply brake system of the winch is automatically cut off to limit the overwinding of the wire rope and to achieve the purpose of lifting the hook within a certain height.

A200 Load moment indicator

A200 Load moment indicator

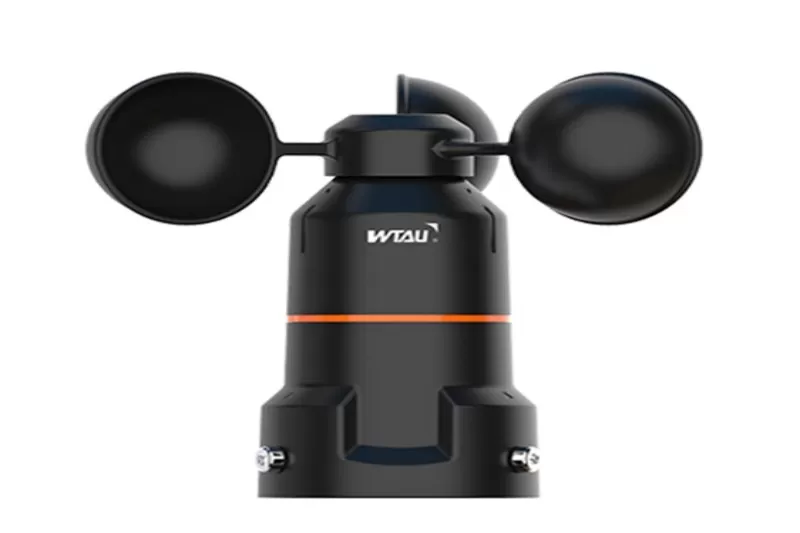

anemometer


WTF-B500 digital anemometer won the China Design Red Star Award. This product is used to measure instantaneous wind speed and average wind speed, and has functions such as automatic monitoring, real-time display, over-limit alarm and control. It is suitable for various cranes such as gantry cranes, bridge cranes, tower cranes, and cranes, as well as various places such as ports, docks, cableways, construction sites, and the Ferris wheel of Happy Valley Amusement Park.

SHL Load cell


The load cells are sensors integrated into the crane's lifting mechanism, precisely measuring the weight of the load being lifted and transmitting this data to the LMI system for analysis.



Technical parameters

Style No.A200
Display240*128 LCD
Operating temperatureminus 20℃~60℃
Operating humidity95%(25℃)
Signal input≤5 channels
Control output≤5channels
System composition error≤5%(F.S)
Power consumption<35W
Alarm volume>60db
IP gradeIp64
Power supplyAC220V±10%

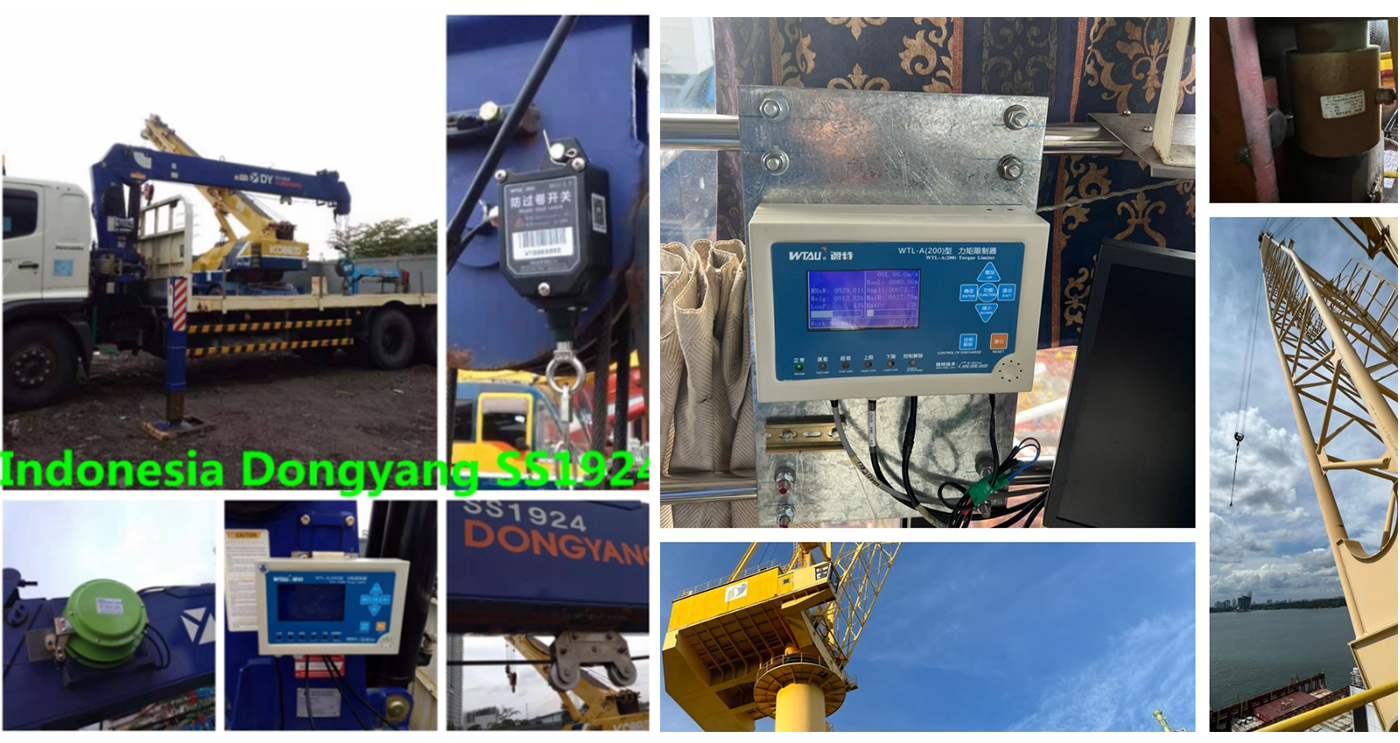

INSTALLATION CASE
