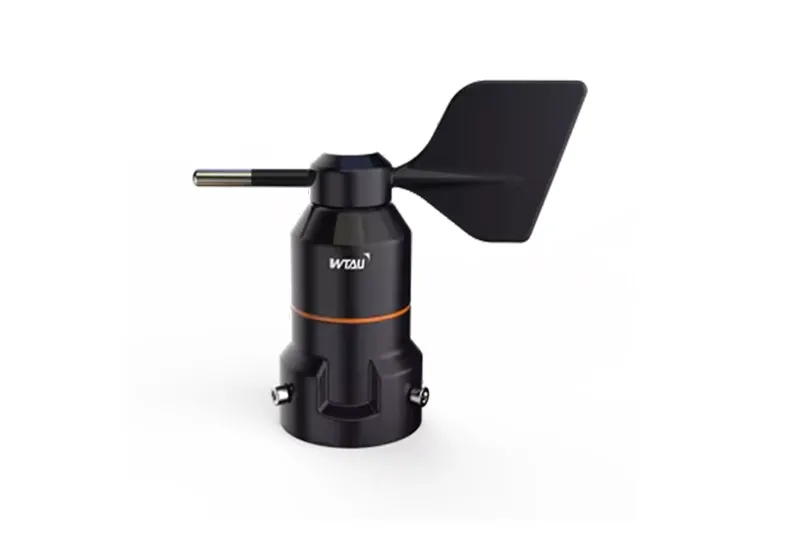

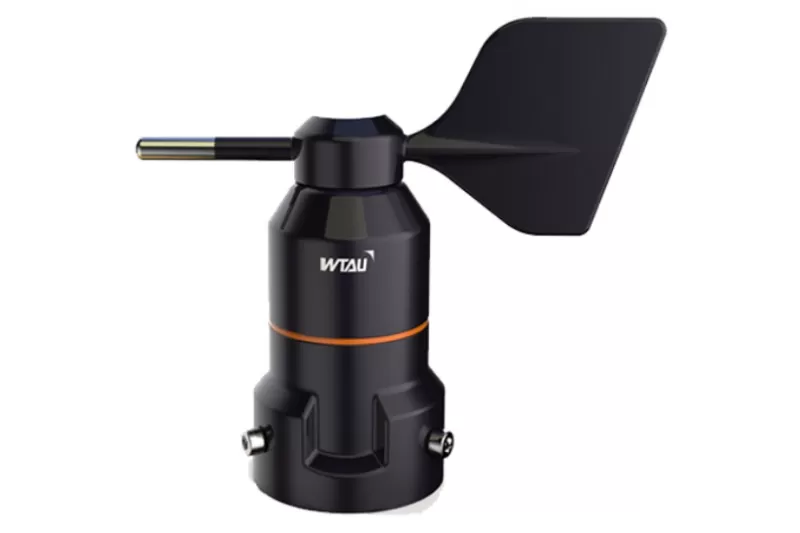

WFX Wind Direction Sensor
WFX Wind Direction Sensor

WFX Wind Direction Sensor

WFX wind direction sensor is made of the high quality aluminum extrusion, covered by plating coating, with the functions of rain-proof, anti-corrosion, anti-aging and interference of strong magnetic.

DETAILED DESCRIPTION

WFX wind direction sensor is made of the high quality aluminum extrusion, covered by plating coating, with the functions of rain-proof, anti-corrosion, anti-aging and interference of strong magnetic.


The sensor measures the wind direction in the outdoor environment, it is divided into east, west, north, and southeast etc.16 directions. It is of high quality with best price. It’s widely used in the fields of environmental protection, meteorology, agriculture, forestry, water conservancy, construction, research and teaching.

Technical parameters

Style No.WFX
Measuring Range16 directions WFX-2) 0-360° (WFX-4)
resolution22.5° (WFX02) 1° (WFX-4)
starting wind speed<1m/s
working humidity20%-90%
response time<0.5S
working powerDC12-36V
working environment-20°-+70℃

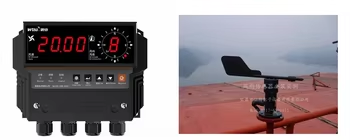

INSTALLATION CASE

WFX Wind Direction Sensor

CERTIFICATIONS

Explosion Proof Certificate

Explosion Proof Certificate

Quality Management System Certificate

CCS

CE-WTF-B500

ISO2022

CCS
